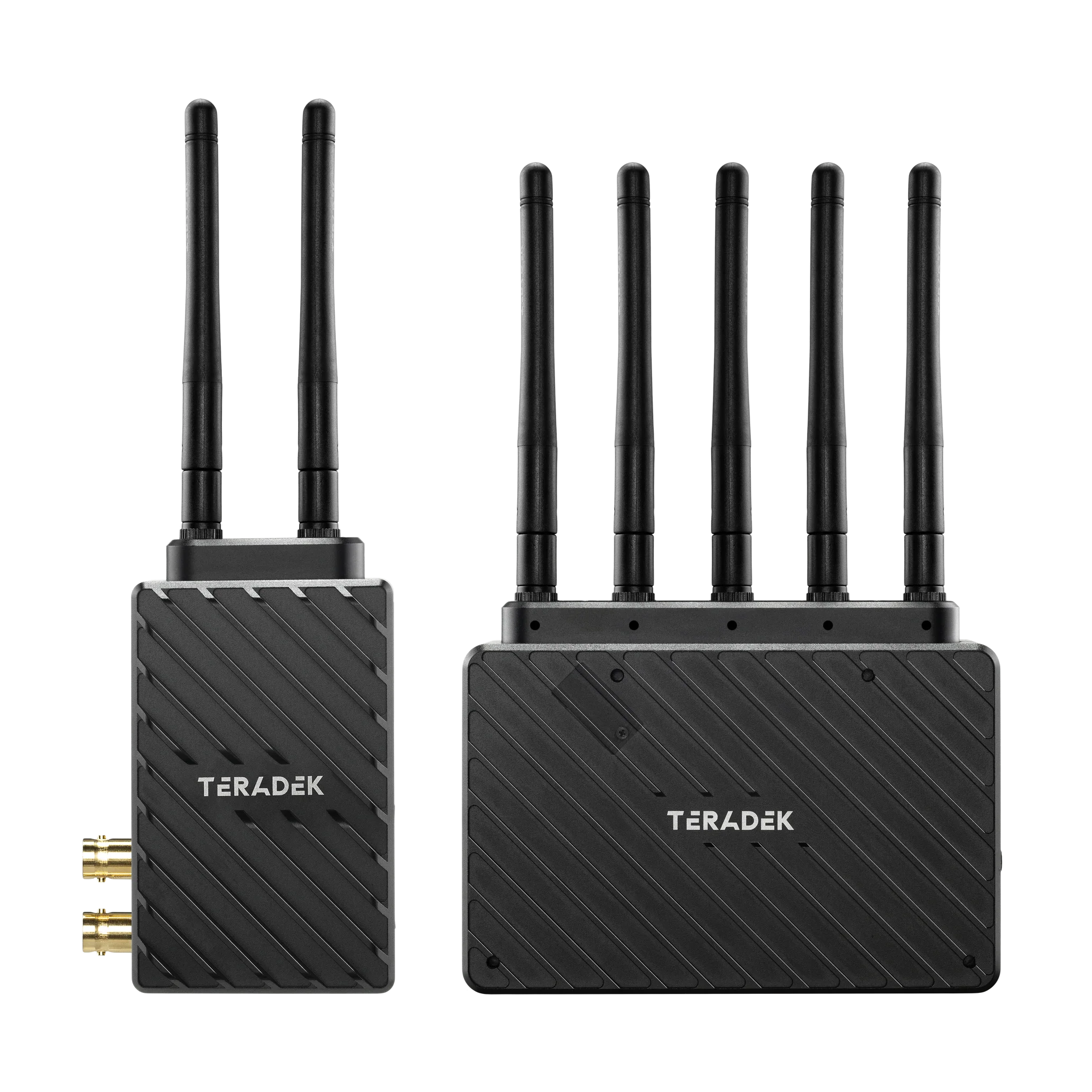

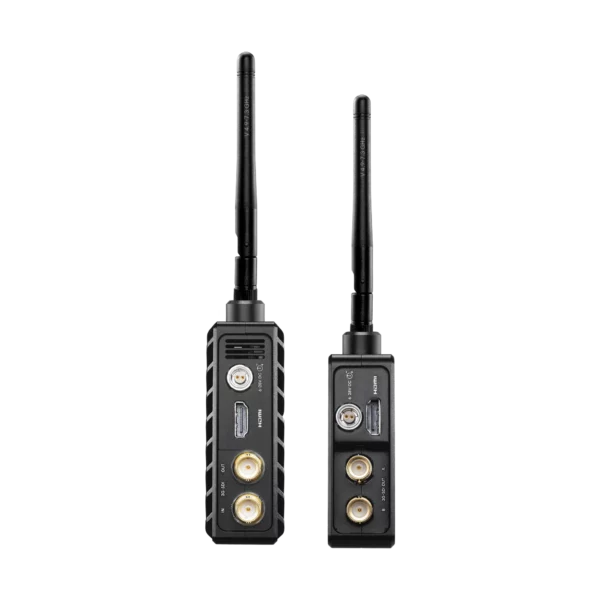

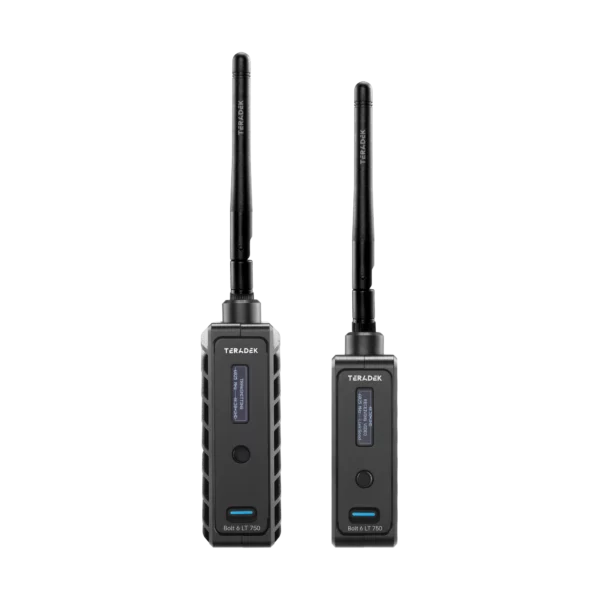

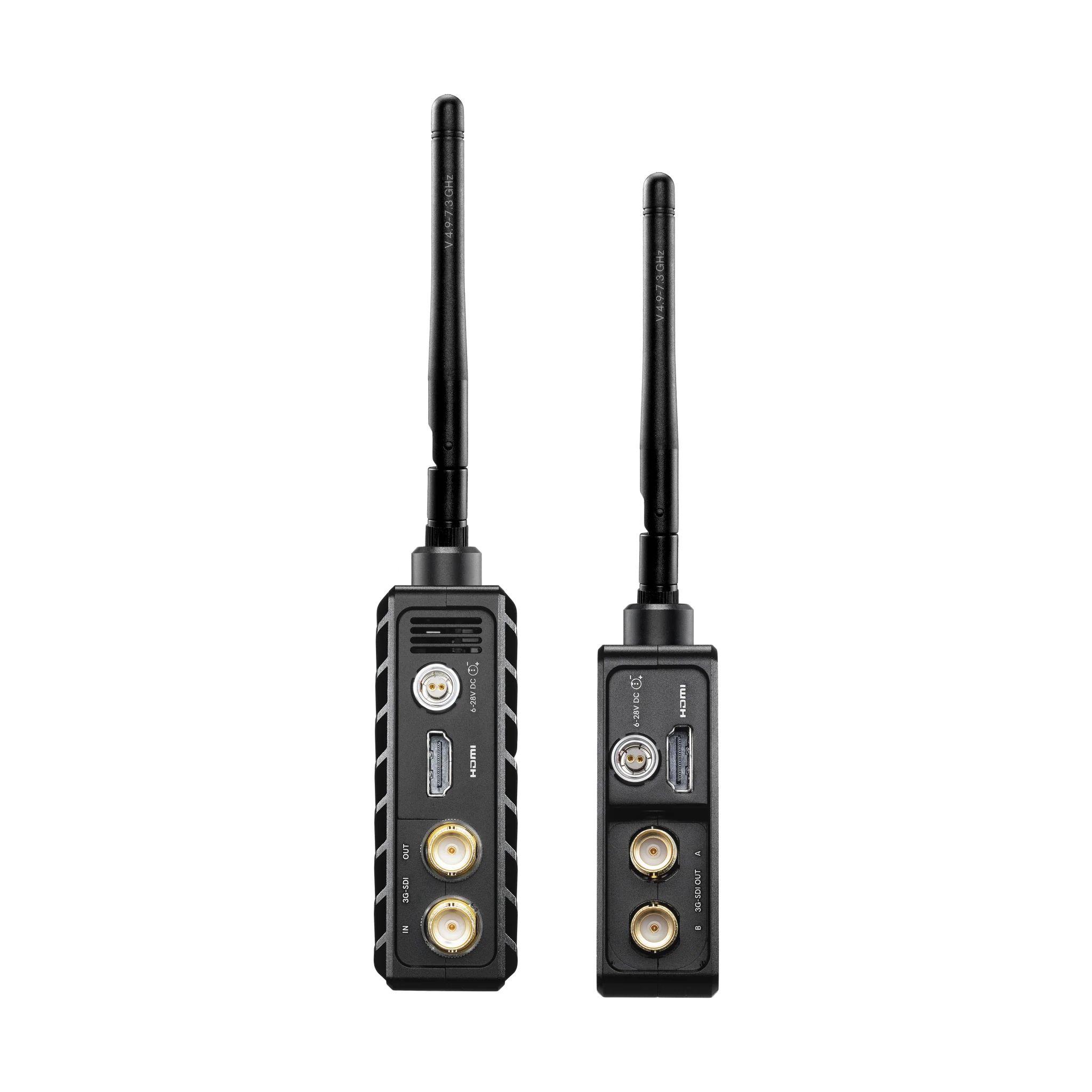

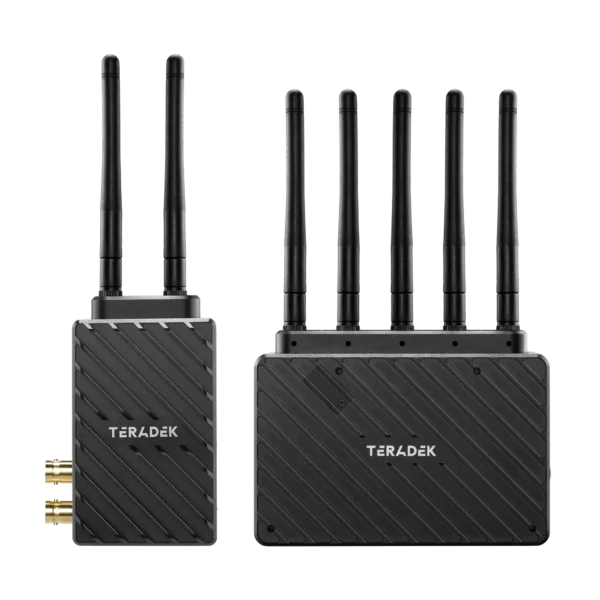

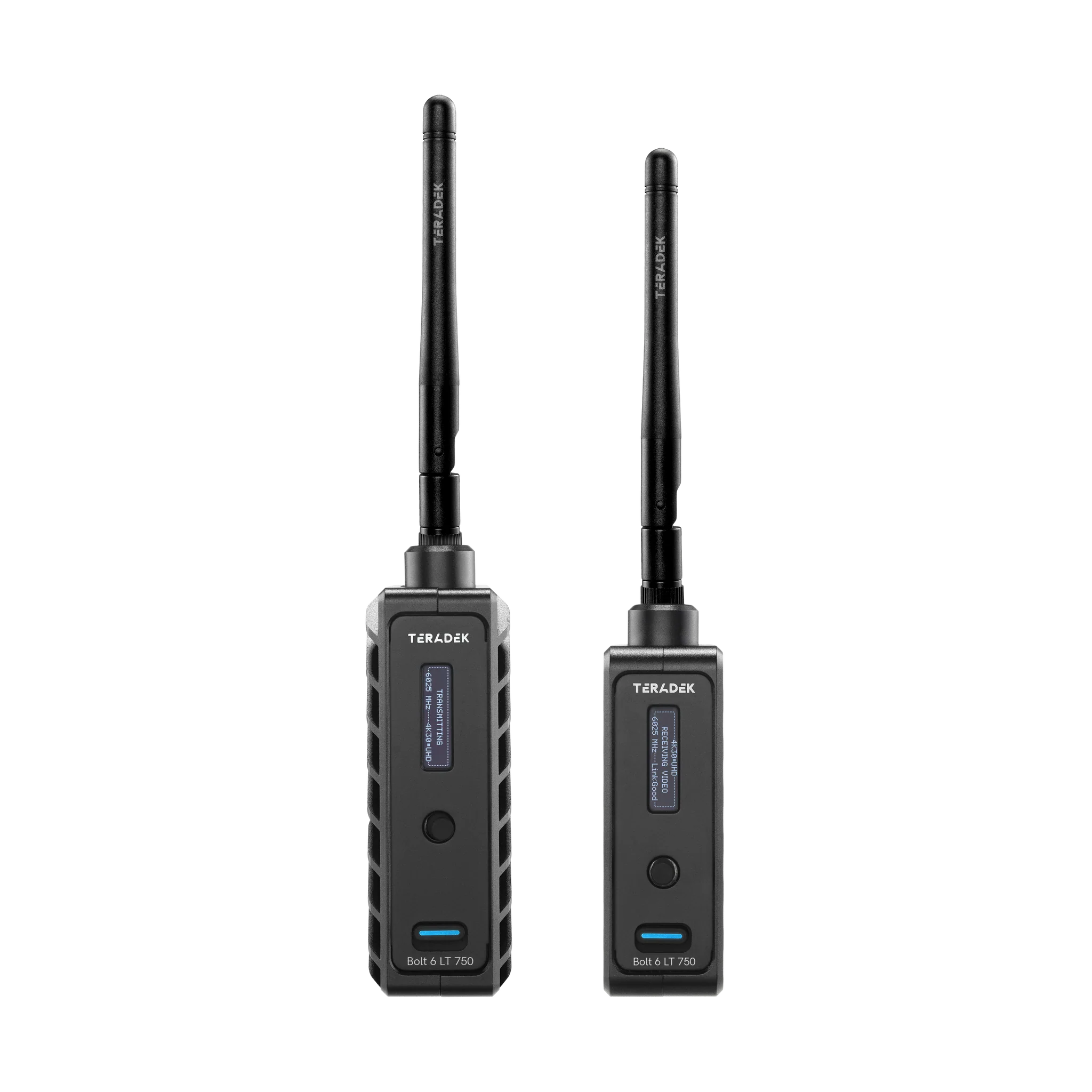

Teradek Bolt 6 LT 750
Système de transmission vidéo HF 225m (1TX-1RX)
Inclus dans la location :
- Emetteur (TX) Bolt 6 LT 750

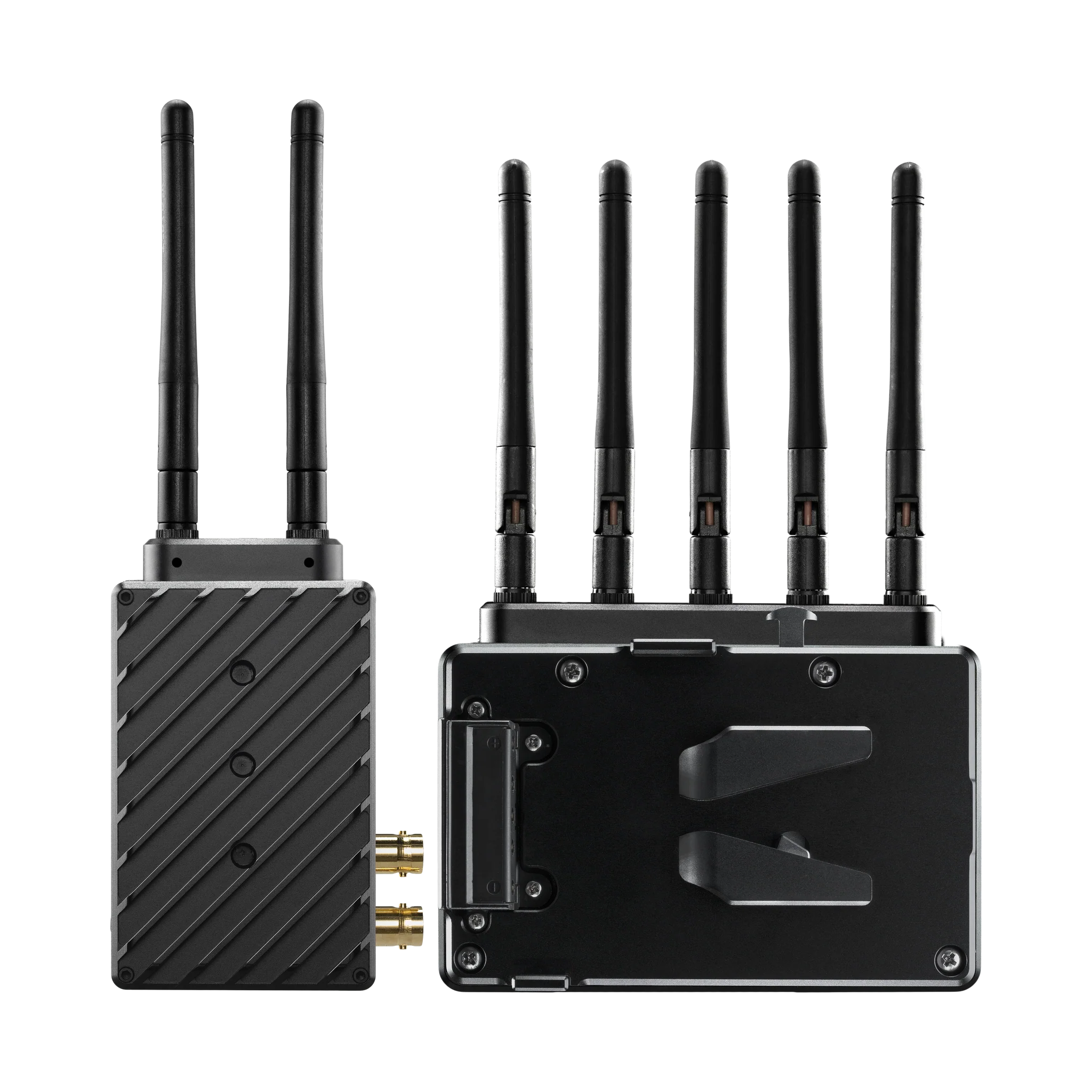

- Récepteur (RX) Bolt 6 LT 750 + V-mount male and female
- Récepteur (RX) Bolt 6 LT 750 + V-mount male and female
Accessoires en option :
- Disponible aussi en 1TX-2RX
Fiche Technique
| Bolt 6 LT 750 TX | Bolt 6 LT 750 RX | |
| Video | Video | |
| - Video Inputs : | - Video Outputs : | |
| 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) | 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) | |
| 1 x HDMI 1.4b Type-A receptacle | 1 x HDMI 1.4b Type-A receptacle | |
| - Video Outputs : | - Sdi Ancillary Data Support : | |
| 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) | Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | |
| - Sdi Ancillary Data Support : | - Color Sampling : | |
| Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit | |
| - Color Sampling : | - Output Video Scaling : | |
| SDI : YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit | No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output | |
| - Delay Tx To Rx : <0.001sec | ||
| - Input Cross Conversion : | ||
| Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) | ||
| Supported Resolutions | Supported Resolutions | |
| 4Kp23.98/24/25/29.97/30 (HDMI only) | 4Kp23.98/24/25/29.97/30 (HDMI only) | |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | 1080i50/59.94/60 | |
| 720p50/59.94/60 | 720p50/59.94/60 | |
| Video Processing | Video Processing | |
| - Video Compression : Visually Lossless | - Video Compression : Visually Lossless | |
| - Color Correction : None | - Test Pattern Generator Support : Yes | |
| - Spectrum Analyzer : Yes | ||
| - Color Correction : 17x17x17 3D LUT (supports 10-bit color) | ||
| Audio Processing | Audio Processing | |
| - Audio Compression : 48kHz 24-bit PCM | - Audio Compression : 48kHz 24-bit PCM | |
| Inputs | Outputs | |
| - Audio Input : Embedded SDI/HDMI Audio Input (2 Channel) | - Audio Output : Embedded SDI/HDMI Audio Output (2 Channel) | |
| Physical | Physical | |
| - Dimensions : 60mm x 103mm x 33mm | - Dimensions : 122mm x 94mm x 27mm | |
| - Weight : 206g | - Weight : 292g | |
| Network | Network | |
| - Antennas : 2 External 2dBi antennas (included) | - Antennas : 5 External 2 dBi antennas (included) | |
| - Wireless : Non-DFS Frequencies : 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | - Wireless : Non-DFS Frequencies : 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz | |
| - DFS Frequencies : 5.270 ~ 5.670 GHz | - DFS Frequencies : 5.270 ~ 5.670 GHz | |
| - Rf Channel Selection : Auto, Manual | - Rf Channel Selection : Auto, Manual | |
| - Encryption : AES-256, RSA-1024 key exchange | - Encryption : AES-256, RSA-1024 key exchange | |
| - Rf Power : 23 dbm EIRP | - Rf Power : 21 dbm EIRP | |
| - Range : Up to 750 ft, line of sight | - Range : Up to 750 ft, line of sight | |
| - Unicast Multicast : Can connect one Transmitter to up to 6 Receivers | - Unicast Multicast : Can connect one Transmitter to up to 6 Receivers | |
| - Noise Rejection : Can coexist with WiFi and 5GHz cordless phones | - Noise Rejection : Can coexist with WiFi and 5GHz cordless phones | |
| Can operate up to 6 sets in same location | Can operate up to 6 sets in same location | |
| Interoperability Compatibility | Interoperability Compatibility | |
| Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) | Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | |
| Power | Power | |
| - Power Input : 2-Pin Circular locking Connector 6-28 VDC | - Power Input : 2-Pin Circular locking Connector 6-28 VDC | |
| - Nominal Power Consumption : 9 Watts | - Nominal Power Consumption : 11 Watts | |
| Environmental | Environmental | |
| - Operating Temperature : 0-40℃ | - Operating Temperature : 0-40℃ |
